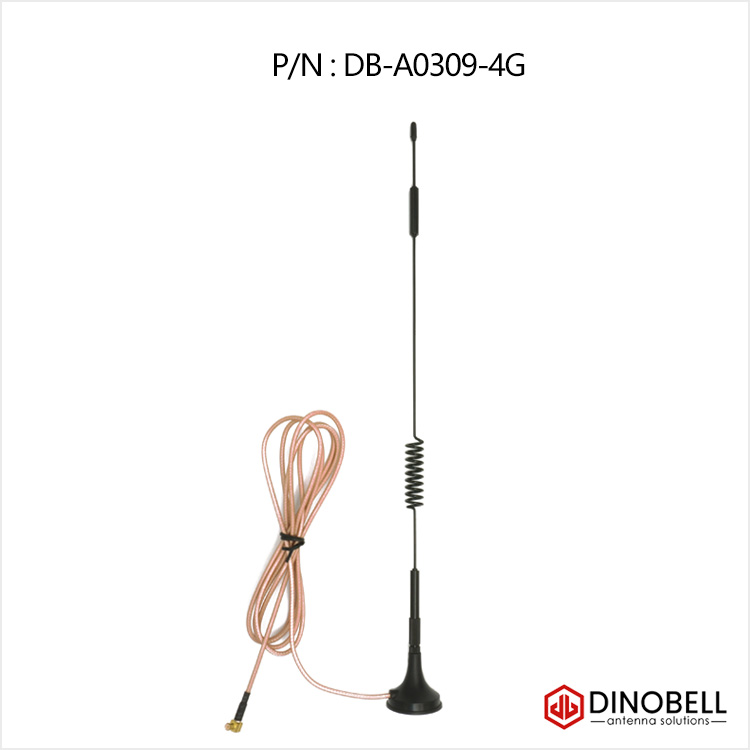

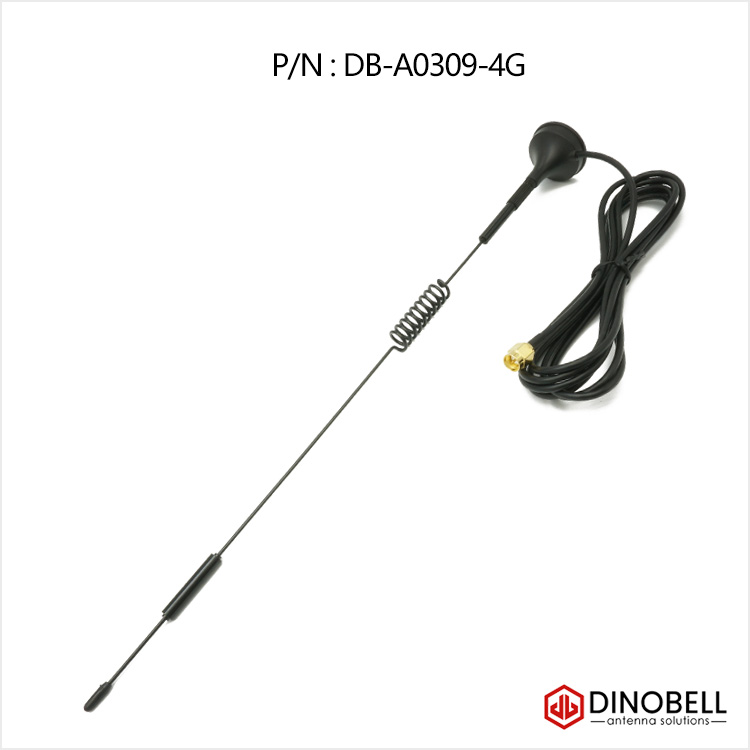

4G Antenna magnetic base higain DB-A0309-4G
4G Antenna magnetic base higain DB-A0309-4G
CATEGORY AND TAGS:
4G LTE Antenna, Magnetic Mount Antenna, Products
Type: 4G Antenna, LTE Antenna, Magnetic base antenna
Part Number: DB-A0309-4G
Freq Range: 700-960/1710-2700MHz
Gain: 5-7dBi
Antenna Height: 318mm
Magnetic base : Diam 30mm
enquiry
Type: 4G Antenna, LTE Antenna, Magnetic base antenna
| Part Number: |
DB-A0309-4G |
| Freq Range: |
700-960/1710-2700MHz |
| Center Freq: |
– |
| Gain: |
5-7dBi |
| VSWR: |
<2.0 |
| Impedance: |
50 Ohm |
| Polarization: |
Vertical |
| Radiation Pattern: |
Omni-Directional |
| Max. Input Power: |
25 W |
| Antenna Height: |
318mm |
| Base Diameter: |
30mm |
| Mounting Method: |
Magnetic |
| Coaxial Cable Type: |
RG174, RG316, RG58 optional |
| Cable Length : |
0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter optional |
| Connector Type: |
SMA-male, RP-SMA-male, MCX ,MMCX , N, M, F optional |
