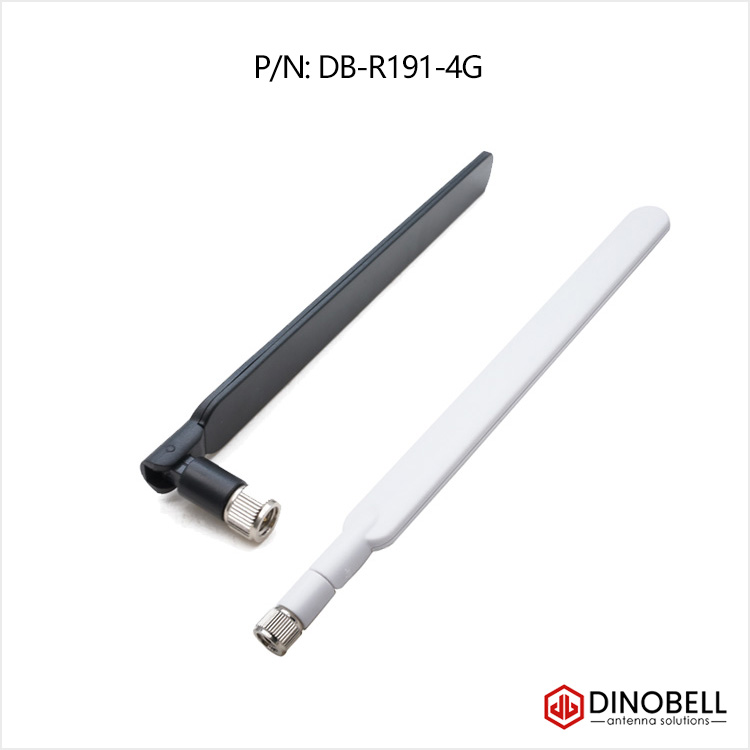

4G Antenna DB-R191-4G

» 4G LTE Antenna » 4G Antenna DB-R191-4G
4G Antenna DB-R191-4G
  • 4G Antenna DB-R191-4G

    • 4G Antenna DB-R191-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, Rubber Antenna

    Type: 4G Antenna, Rubber duck antenna

    Part Number: DB-R191-4G

    Freq Range: 700-960/1710-2700MHz

    Gain: 3-5 dBi

    Application: 4G LTE 3G 2G cellular network and Huawei cell equipment and IoT application

    enquiry
    • Specifications

    Type:  4G Antenna, 4G External Antenna

    Part Number: DB-R191-4G
    Freq Range: 700-960/1710-2700MHz
    Center Freq:  /
    Gain: 3-5 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 25 W
    Antenna Dimensions: H191mm*W11mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
