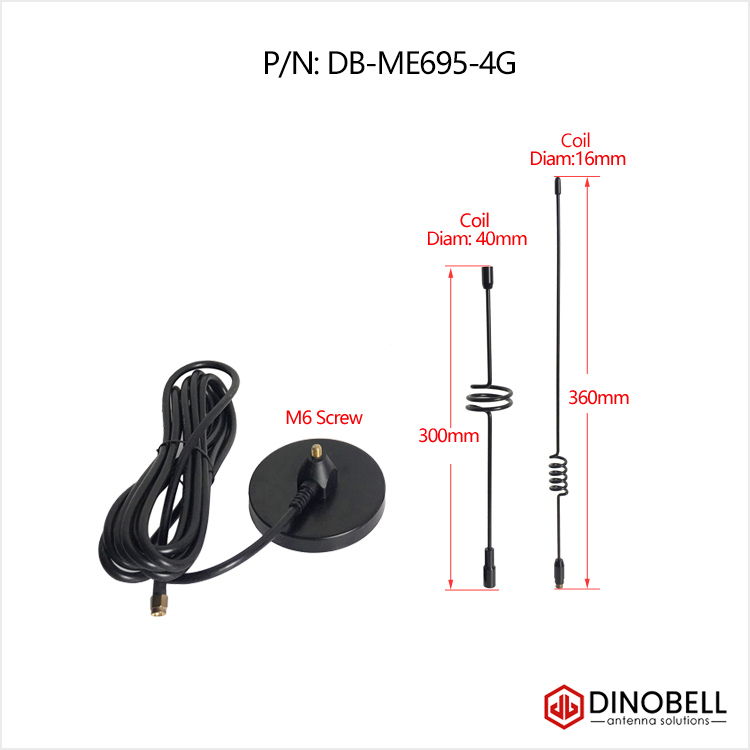

LTE Antennas DB-ME695-4G

» 4G LTE Antenna » LTE Antennas DB-ME695-4G
LTE Antennas DB-ME695-4G
  • LTE Antennas DB-ME695-4G

    • LTE Antennas DB-ME695-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, Magnetic Mount Antenna

    Type: LTE AntennaS,  Antenna for 4G LTE with strong magnetic base

    Part Number: DB-ME695-4G

    Freq Range: 700-960/1710-2700MHz

    Gain: 5-7dBi

    Antenna Height: 695mm

    Magnetic base : Diam 82mm

    enquiry
    • Specifications

    Type: LTE Antennas, Strong Magnetic base 4G Antenna



    Part Number: DB-ME695-4G
    Freq Range: 700-960/1710-2700MHz
    Center Freq: –
    Gain: 5-7dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 50 W
    Antenna Height: 695mm
    Base Diameter: 82mm
    Mounting Method: Magnetic
    Coaxial Cable Type: RG58
    Cable Length : 0.5 meter, 1 meter, 3 meter, 5 meter, 10 meter, 20 meter optional
    Connector Type: SMA-male, RP-SMA-male, MCX  ,MMCX , N,  M, F   optional
