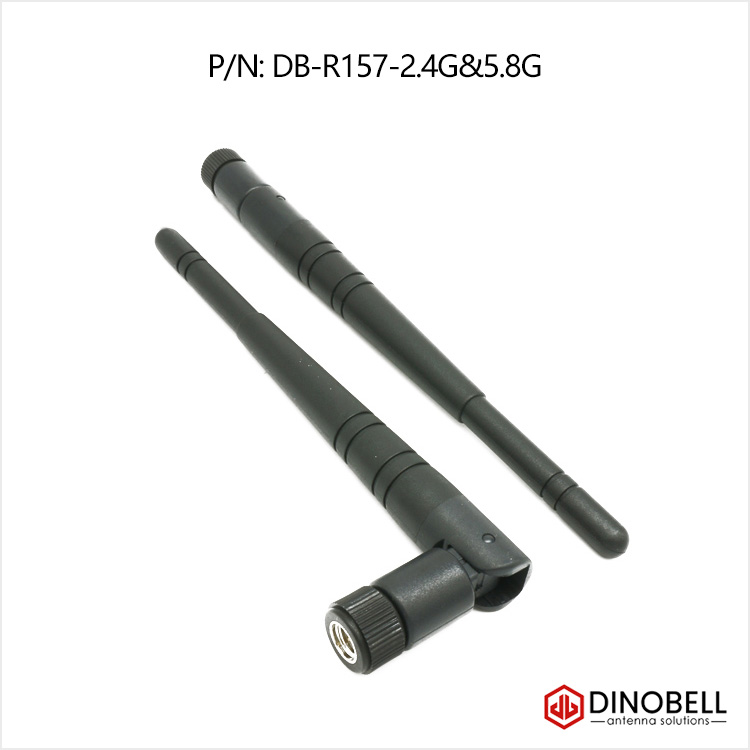

WiFi Antenna Dual Band DB-R157-2.4G&5.8G

» Products » WiFi Antenna Dual Band DB-R157-2.4G&5.8G
WiFi Antenna Dual Band DB-R157-2.4G&5.8G
  • WiFi Antenna Dual Band DB-R157-2.4G&5.8G

    • WiFi Antenna Dual Band DB-R157-2.4G&5.8G

    CATEGORY AND TAGS:
    Products, Rubber Antenna, WiFi Antenna

    Type: 2.4ghz Antenna, 5.8GHz, WiFi Antenna

    Part Number: DB-R157-2.4G&5.8G

    Freq Range: 2400-2500MHz / 5150-5900MHz

    Gain: 3-5dBi

    Mounting Method: SMA Terminal

    Antenna Sizes: H157mm

    Application: 2.4GHz antenna,  WiFi, Bluetooth, Zigbee

    enquiry
    • Specifications

    Type:  2.4GHz Antenna,  5.8GHz Antenna , WiFi Antenna, Bluetooth Antenna, SMA Antenna



    Part Number: DB-R157-2.4G&5.8G
    Freq Range: 2400-2500MHz / 5150-5900MHz
    Center Freq: 2450MHz / 5.8GHz
    Gain: 3-5 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 15 W
    Antenna Dimensions: H157mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
