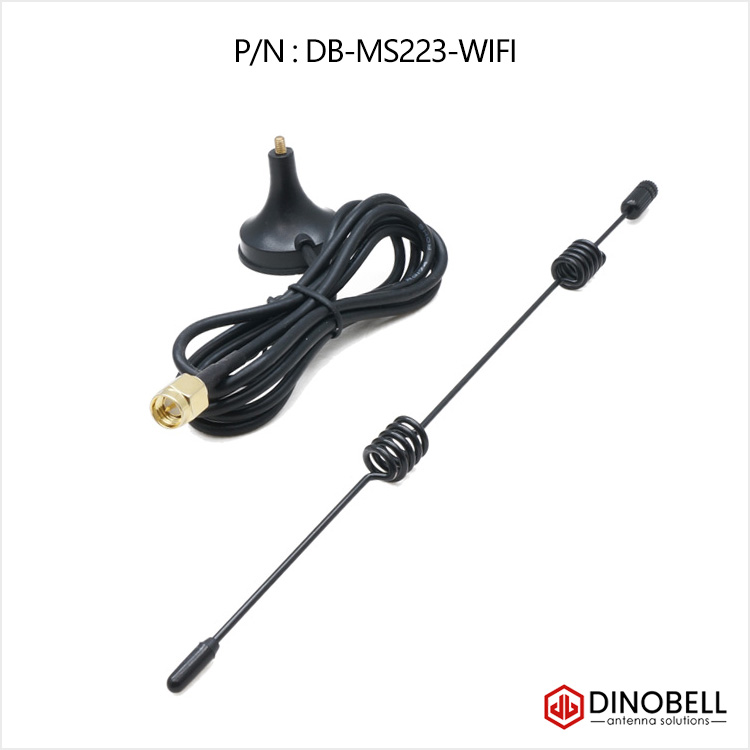

WiFi External Antenna DB-MS223-WiFi
WiFi External Antenna DB-MS223-WiFi
CATEGORY AND TAGS:
Magnetic Mount Antenna, WiFi Antenna
Type: WiFi Antenna, External antenna
Part Number: DB-MS223-WiFi
Freq Range: 2400-2500/5800-5900MHz
Center Freq: 2450/5850MHz
Gain: 3-5dBi
Application: WiFi Router, WiFi wireless network, WLAN
enquiry
Type: WiFi external antenna, 2.4ghz Antenna, WiFi magnetic base antenna
| Part Number: |
DB-MS223-WiFi |
| Freq Range: |
2400-2500/5800-5900MHz |
| Center Freq: |
2450/5850MHz |
| Gain: |
3-5dBi |
| VSWR: |
<2.0 |
| Impedance: |
50 Ohm |
| Polarization: |
Vertical |
| Radiation Pattern: |
Omni-Directional |
| Max. Input Power: |
25 W |
| Antenna Height: |
223mm |
| Base Diameter: |
30mm |
| Mounting Method: |
Magnetic |
| Coaxial Cable Type: |
RG174, RG316, RG58 optional |
| Cable Length : |
0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter optional |
| Connector Type: |
SMA-male, RP-SMA-male, MCX ,MMCX , N, M, F optional |
