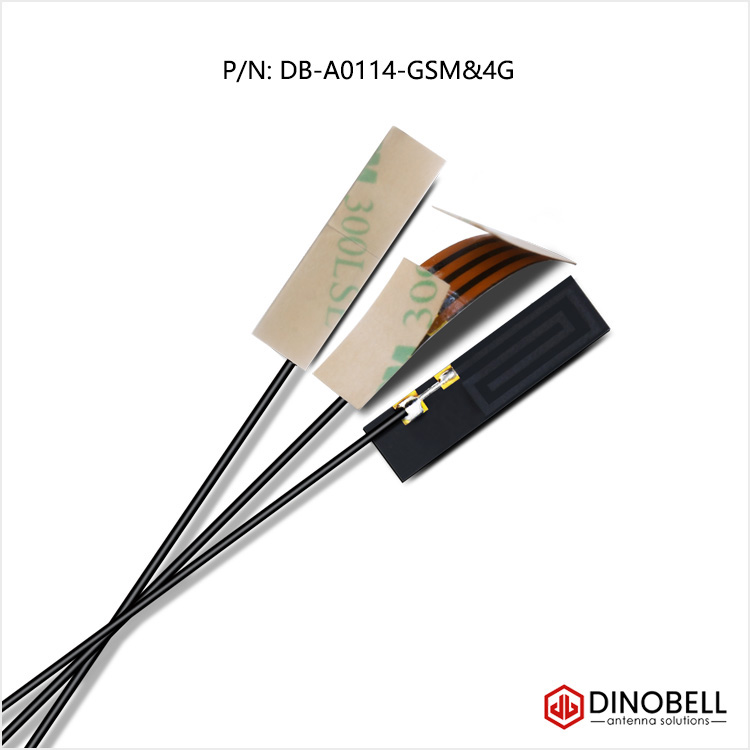

4G Antenna Flex PCB DB-A0114-GSM&4G
4G Antenna Flex PCB DB-A0114-GSM&4G
CATEGORY AND TAGS:
4G LTE Antenna, PCB Antenna, Products
Type: 4G Antenna , Flex PCB Antenna, Embedded LTE Antenna
Part Number: DB-A0114-GSM&4G
Freq Range: 700-960MHz/1710-2700MHz
Gain: 2.5dBi /3 dBi
Application: Embedded 4G antenna, LTE antenna, 2G Antenna, NB-IOT
enquiry
Type: Flex PCB Antenna, 4G Antenna, LTE Antenna
| Part Number: |
DB-A0114-GSM&4G |
| Freq Range: |
700-960MHz/1710-2700MHz |
| Gain: |
2.5dBi / 3 dBi |
| VSWR: |
<2.0 |
| Impedance: |
50 Ohm |
| Polarization: |
Linear |
| Radiation Pattern: |
Omni-Directional |
| Max. Input Power: |
10 W |
| Antenna Sizes: |
32*8*0.1mm |
| Mounting Method: |
Adhesive |
| Coaxial Cable Type: |
Diam 1.13mm / RG178 |
| Cable Length : |
5cm/10cm/15cm/30cm/50cm |
| Connector Type: |
IPEX 1/U.F.L/MHF4/Welding/SMA Male |
