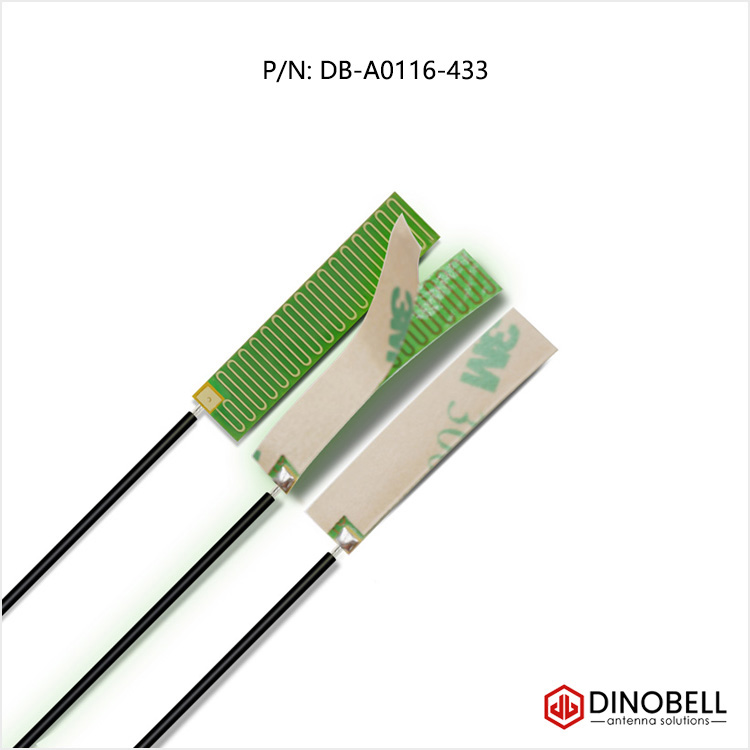

433MHz Antenna Flex PCB DB-A0116-433M

» LoRa Antenna » 433MHz Antenna » 433MHz Antenna Flex PCB DB-A0116-433M
433MHz Antenna Flex PCB DB-A0116-433M
  • 433MHz Antenna Flex PCB DB-A0116-433M

    • 433MHz Antenna Flex PCB DB-A0116-433M

    CATEGORY AND TAGS:
    433MHz Antenna, LoRa Antenna, PCB Antenna, Products

    Type: 433 Antenna , Flex PCB Antenna, LoRa Antenna

    Part Number: DB-A0116-433M

    Freq Range: 423-443MHz

    Gain: 3 dBi

    Application: Embedded 433mhz antenna, LoRa

    enquiry
    • Specifications

    Type:  Flex PCB Antenna, 433MHz  Antenna, LoRa Antenna



    Part Number: DB-A0116-433M
    Freq Range: 423-443MHz
    Gain: 3 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 29*6*0.1mm
    Mounting Method: Adhesive
    Coaxial Cable Type: Diam 1.13mm / RG178
    Cable Length : 5cm/10cm/15cm/30cm/50cm
    Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male
