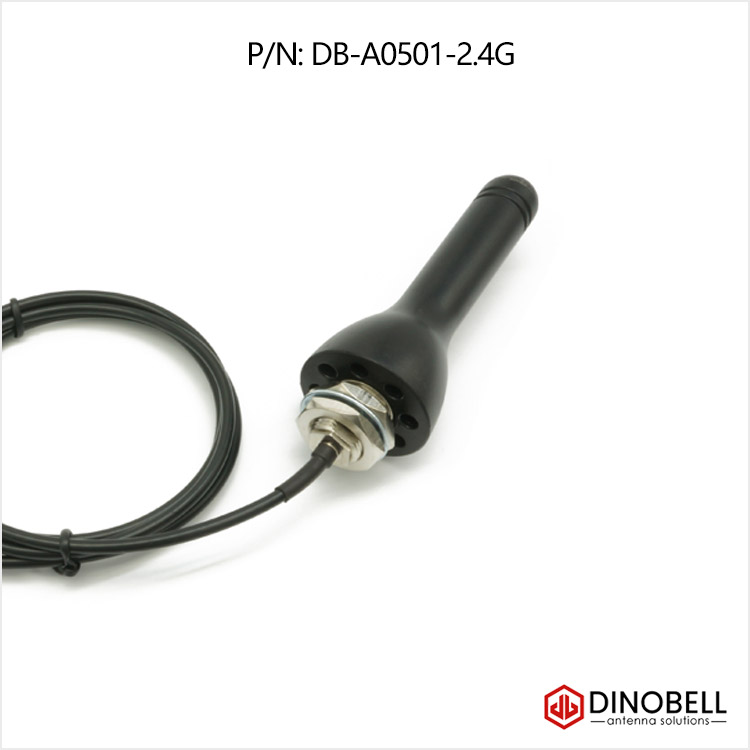

Outdoor WiFi Antenna Screw Mounting DB-A0501-2.4G
CATEGORY AND TAGS:
Products, WiFi Antenna
Type: 2.4ghz Antenna, Outdoor WiFi antenna, screw mounting antenna
Part Number: DB-A0501-2.4G
Freq Range: 2400-2500MHz
Gain: 3dBi
Mounting Method: M12 Screw
Antenna Sizes: 30mm(Diam)*93mm(Height)
Application: 2.4GHz antenna, WiFi, Bluetooth, Zigbee
enquiry
Type: 2.4GHz Antenna, WiFi Antenna, Bluetooth Antenna, Outdoor Screw Mounting Antenna
| Part Number: |
DB-A0501-2.4G |
| Freq Range: |
2400-2500MHz |
| Gain: |
3dBi |
| VSWR: |
<2.0 |
| Impedance: |
50 Ohm |
| Polarization: |
Linear |
| Radiation Pattern: |
Omni-Directional |
| Max. Input Power: |
10 W |
| Antenna Sizes: |
30mm(Diam)*93mm(Height) |
| Mounting Method: |
Screw Mounting -M12 |
| Coaxial Cable Type: |
RG178/RG174/RG316 |
| Cable Length : |
15cm/30cm/50cm/1meter/… |
| Connector Type: |
IPEX /SMA/SMB/MCX/… |
