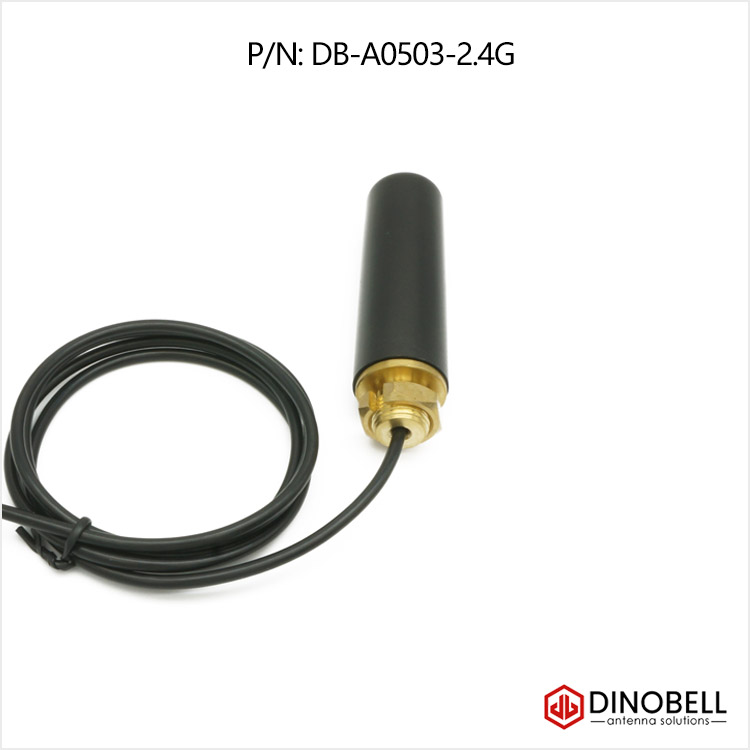

WiFi 2.4GHz Antenna Through Hole DB-A0503-2.4G

» Products » WiFi 2.4GHz Antenna Through Hole DB-A0503-2.4G
WiFi 2.4GHz Antenna Through Hole DB-A0503-2.4G
  • WiFi 2.4GHz Antenna Through Hole DB-A0503-2.4G

    • WiFi 2.4GHz Antenna Through Hole DB-A0503-2.4G

    CATEGORY AND TAGS:
    Products, WiFi Antenna

    Type: 2.4ghz Antenna, WiFi Antenna, Outdoor waterproof antenna

    Part Number: DB-A0503-2.4G

    Freq Range: 2400-2500MHz

    Gain: 3dBi

    Mounting Method: M12 Screw

    Antenna Sizes: 20mm(Diam)*73mm(Height)

    Application: 2.4GHz antenna,  WiFi, Bluetooth, Zigbee

    enquiry
    • Specifications

    Type:  2.4GHz Antenna, WiFi Antenna, Bluetooth Antenna, Outdoor Waterproof Screw Mounting Antenna



    Part Number: DB-A0503-2.4G
    Freq Range: 2400-2500MHz
    Gain: 3dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 20mm(Diam)*73mm(Height)
    Mounting Method:  Screw Mounting -M12
    Coaxial Cable Type: RG178/RG174/RG316
    Cable Length : 15cm/30cm/50cm/1meter/…
    Connector Type: IPEX /SMA/SMB/MCX/…
