Lora Antenna 868mhz DB-R195-868M

» LoRa Antenna » 868MHz Antenna » Lora Antenna 868mhz DB-R195-868M

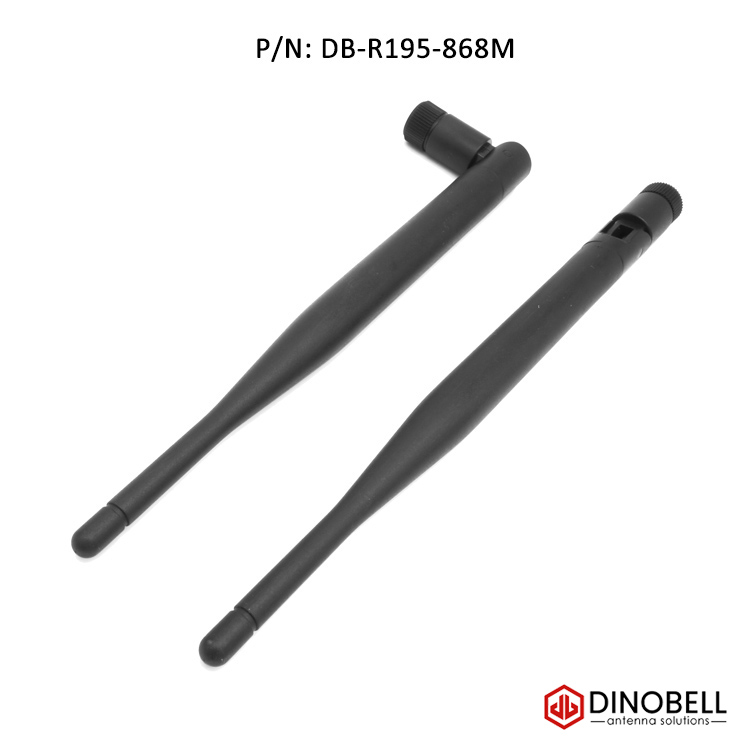

Lora Antenna 868mhz DB-R195-868M
  • Lora Antenna 868mhz DB-R195-868M

    • Lora Antenna 868mhz DB-R195-868M

    CATEGORY AND TAGS:
    868MHz Antenna, LoRa Antenna, Products, Rubber Antenna

    Type: Lora Antenna 868MHz SMA Terminal Rubber duck

    Freq Range: 858-878MHz

    Center Freq: 868MHz

    Gain: 3dBi

    Application:  LoRa,  RFID

    enquiry
    • Specifications

    Type: Lora Antenna 868MHz SMA Terminal DB-R195-868M



    Part Number: DB-R195-868M
    Freq Range: 858-878MHz
    Center Freq: 868MHz
    Gain: 3 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 25 W
    Antenna Dimensions: H195mm*D13mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
